Sensor Electronics Control Module, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

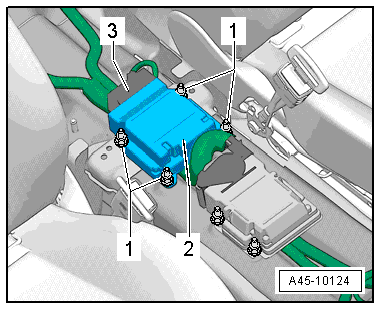

The Sensor Electronics Control Module -J849- is installed under the center console cover.
-- Remove the center console cover. Refer to CENTER CONSOLE .
-- Disconnect the connector -3-.
-- Remove all four nuts -1-.
-- Remove the Sensor Electronics Control Module -J849- -2-.
