Overview - Control Module And Hydraulic Unit: Notes
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

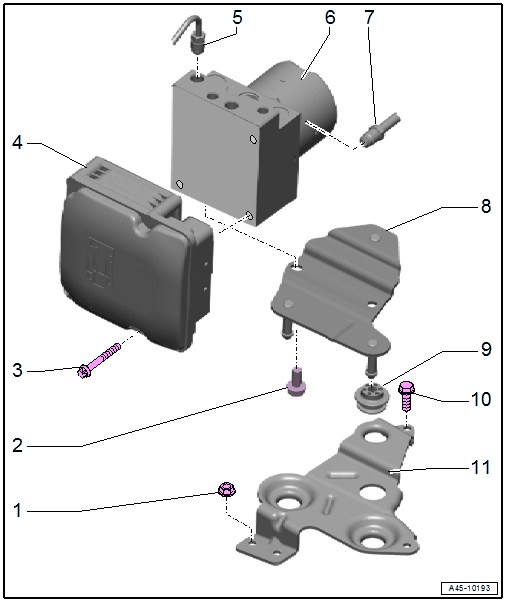

- Nut
- 9 Nm
- Bolt
- 20 Nm
- Bolt
- 4.5 Nm
- ABS Control Module -J104-
- Component Location:
- Vehicles without high-voltage system. Refer to appropriate service information. .
- Vehicles with high-voltage system. Refer to appropriate service information. .
- Control module, separating from hydraulic unit. Refer to CONTROL MODULE, SEPARATING FROM HYDRAULIC UNIT .
- Control module, attaching to hydraulic unit. Refer to CONTROL MODULE, INSTALLING ON HYDRAULIC UNIT .
- Component Location:
- Brake Line
- Tightening specification. Refer to SEPARATING POINTS .
- Do not change the bending shape.
- ABS Hydraulic Unit -N55-
.
- Component Location:
- Vehicles without high-voltage system. Refer to appropriate service information. .
- Vehicles with high-voltage system. Refer to appropriate service information .
- Removing and installing. Refer to ABS Control Module -J104- /ABS Hydraulic Unit -N55-, REMOVING AND INSTALLING .CAUTION:
The pump motor must not be separated from the hydraulic unit.
- Component Location:
- Brake Line
- Do not change the bending shape.
- Tightening specification. Refer to SEPARATING POINTS .
- Bracket
- Buffer
- Bolt
- 9 Nm
- Bracket

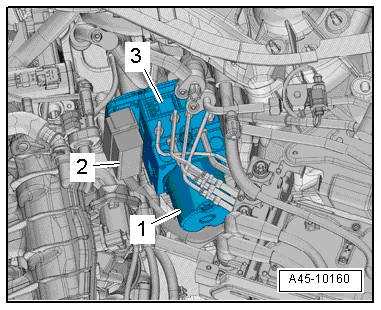

The hydraulic unit -2- with the control module -3- and electric connection -1- is located inside the engine compartment on the left front side under the coolant expansion tank.

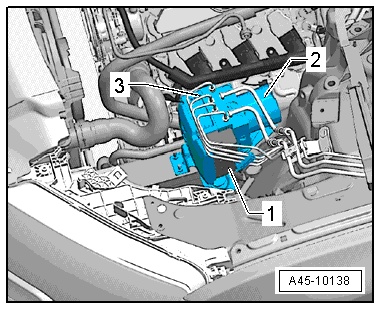

The hydraulic unit -2- with the control module -3- and electric connection -1- is located inside the engine compartment on the left front side under the coolant expansion tank.
