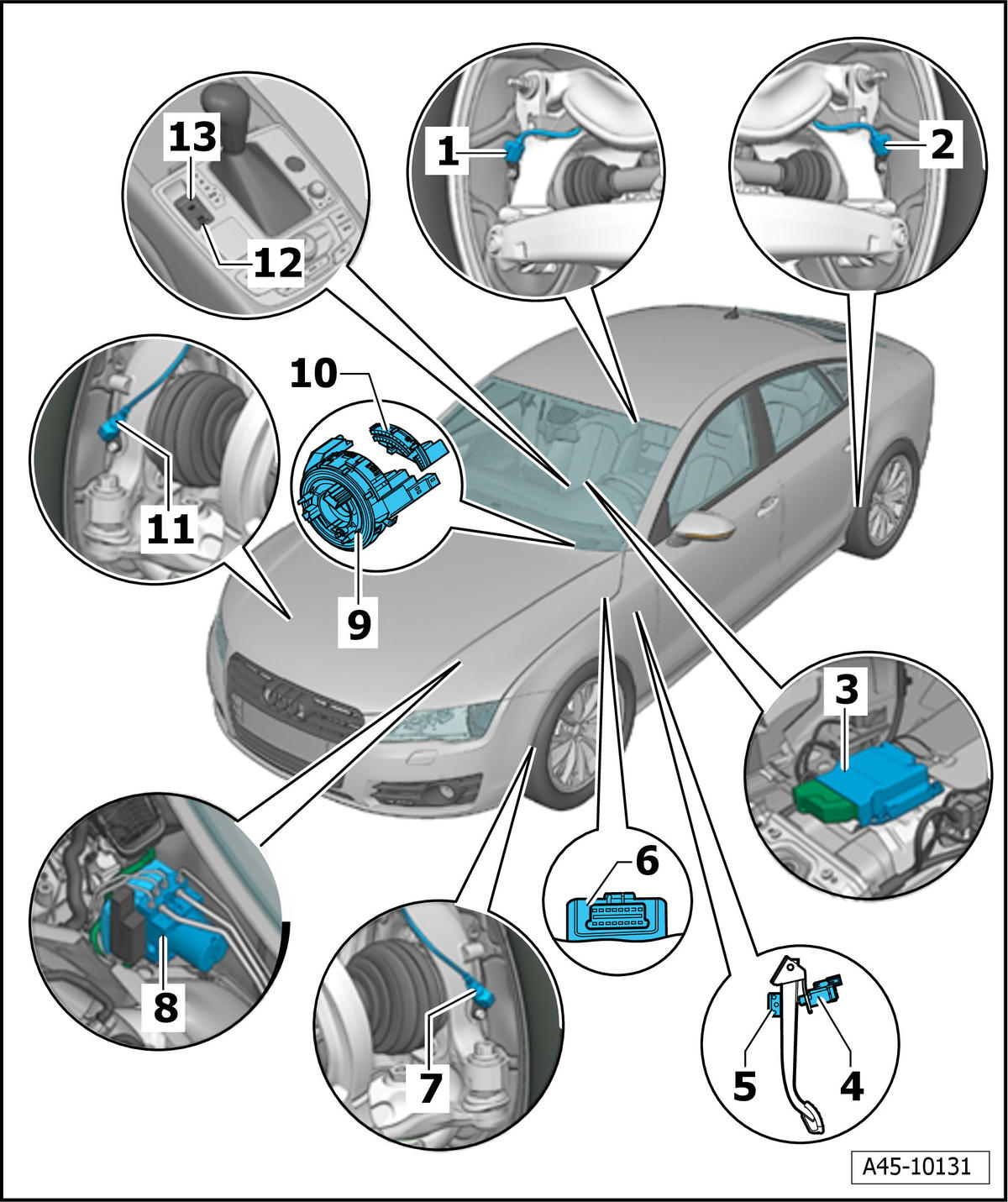

Overview - Abs/Esp: Notes
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Right Rear ABS Wheel Speed Sensor -G44-
- Checking using the Vehicle Diagnostic Tester in Guided Fault Finding
- Overview. Refer to OVERVIEW - REAR AXLE SPEED SENSOR .
- Left Rear ABS Wheel Speed Sensor -G46-
- Checking using the Vehicle Diagnostic Tester in Guided Fault Finding
- Overview. Refer to OVERVIEW - REAR AXLE SPEED SENSOR .
- Sensor Electronics Control Module -J849-
- Component location: under the center console extension
- Checking using the Vehicle Diagnostic Tester in Guided Fault Finding
- Removing and installing. Refer to SENSOR ELECTRONICS CONTROL MODULE, REMOVING AND INSTALLING .
- Brake Lamp Switch -F-
- Component location: on the brake pedal
- Removing and installing. Refer to BRAKE LAMP SWITCH, REMOVING AND INSTALLING .
- Brake Pedal
- Overview. Refer to OVERVIEW - BRAKE PEDAL .
- Diagnostic Connection
- Component location. Refer to appropriate service information .
- Left Front ABS Wheel Speed Sensor -G47-
- Checking using the Vehicle Diagnostic Tester in Guided Fault Finding
- Overview. Refer to OVERVIEW - FRONT AXLE SPEED SENSOR .
- ABS Hydraulic Unit -N55- with ABS Control Module -J104-
- The hydraulic unit and control module form the hydraulic control unit.
- Overview. Refer to OVERVIEW - CONTROL MODULE AND HYDRAULIC UNIT .
- Steering Column Electronics Control Module -J527-
- With Airbag Spiral Spring/Return Spring with Slip Ring -F138- and Steering Angle Sensor -G85-
- Removing and installing. Refer to STEERING COLUMN SWITCH MODULE .
- Return Ring
- Installed location: installed on the steering column with the slip ring
- Right Front ABS Wheel Speed Sensor -G45-
- Checking using the Vehicle Diagnostic Tester in Guided Fault Finding
- Overview. Refer to OVERVIEW - FRONT AXLE SPEED SENSOR .
- -AUTO HOLD- Button -E540-
- Component location: in the center console
- Removing and installing. Refer to CONTROLS .
- Electromechanical Parking Brake Button -E538-
- Component location: in the center console
- Removing and installing. Refer to CONTROLS .

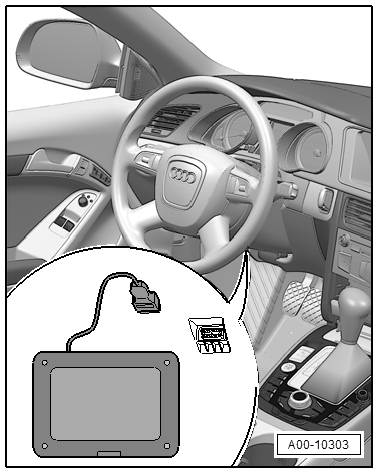

- Component location: the diagnostic connection for the Vehicle Diagnostic Tester is located in the driver side footwell.
