Front Turn Signal Light Bulb: Removal

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from the battery.
  2. Turn socket (A) and remove the bulb.

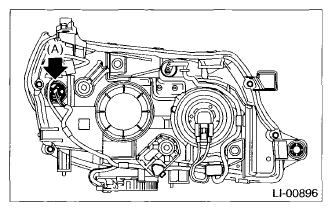

    Fig 1: Front Turn Signal Light Bulb Socket
    G07672972Courtesy of SUBARU OF AMERICA, INC.
