Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Disengage the relay panel under the instrument panel on the driver side with the relay- and auxiliary fuse panels still connected to the mount. Refer to RELAY PANEL UNDER DRIVER SIDE INSTRUMENT PANEL, REMOVING AND INSTALLING .

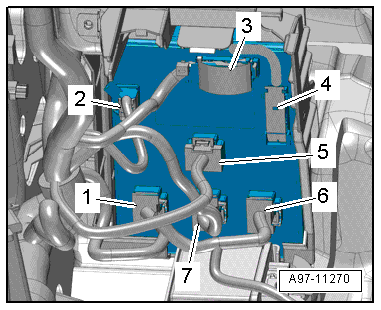

-- Disconnect the connectors -1, 2, 5, 6 and 7-.
-- Disconnect the connectors -3 and 4-.
-- To disconnect the connector, press the catch -1-, rotate the retaining bracket in direction of -arrow- and remove the connector.

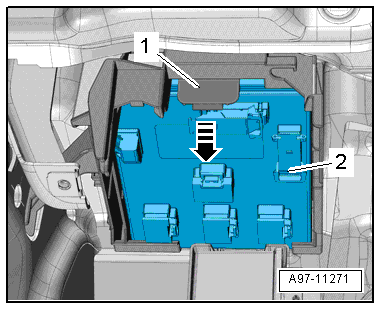

-- Release the spring -1- and remove the Vehicle Electrical System Control Module -J519- -2- downward from the mount in direction of -arrow-.
