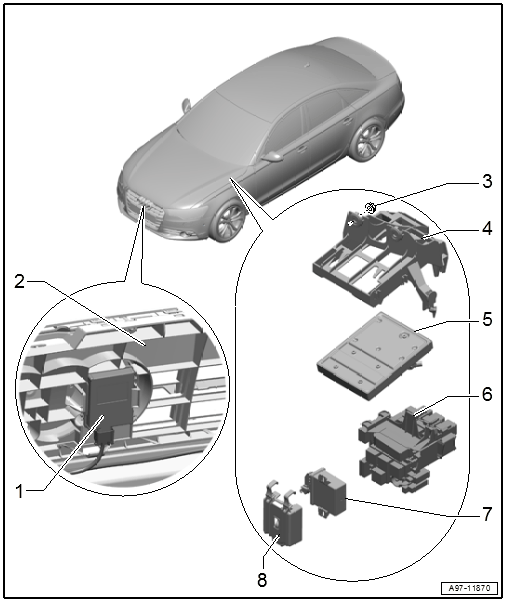

Component Location Overview - Control Modules
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Garage Door Opener Control Module -J530-
- Removing and installing. Refer to GARAGE DOOR OPENER CONTROL MODULE, REMOVING AND INSTALLING .
- Radiator Grille
- Nut
- 3 Nm
- Quantity: 2
- Mount
- For the Vehicle Electrical System Control Module -J519- and relay panel
- Removing and installing. Refer to RELAY PANEL MOUNT, REMOVING AND INSTALLING, UNDER DRIVER SIDE INSTRUMENT PANEL, Vehicle Electrical System Control Module -J519- .
- Vehicle Electrical System Control Module -J519-
- Removing and installing. Refer to Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING .
- Relay Panel under the Driver Side Instrument Panel
- Headlamp Range Control Module -J431-
- Mount
- For the Headlamp Range Control Module -J431-
