General Tool

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

GENERAL TOOL DESCRIPTION CHART

TOOL NAME	REMARKS
TORX® T50	Used for removing and installing the wiper motor assembly.
Circuit tester	Used for checking voltage and continuity.

NOTE: Refer to the data described below, prepare the materials to make a front washer nozzle adjustment tool.

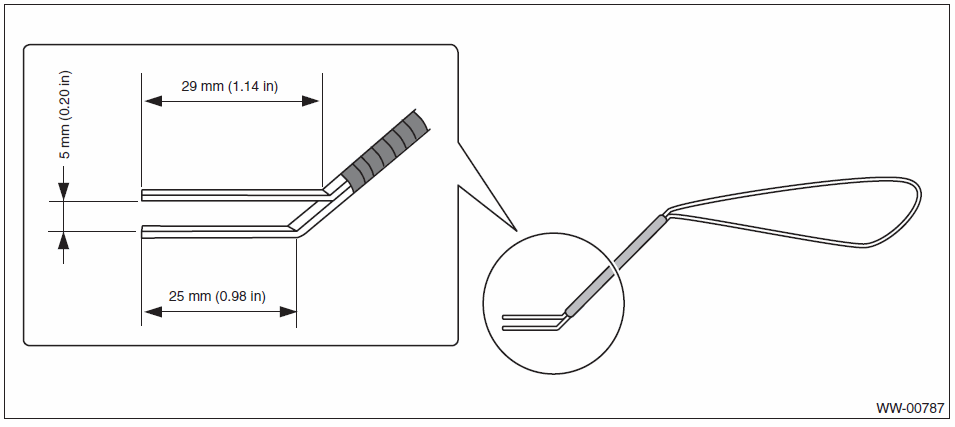

Fig 1: Front Washer Nozzle Adjustment Tool Data

Courtesy of SUBARU OF AMERICA, INC.

Materials

Vertebra of wiper blade which is to be discarded
Vinyl tape

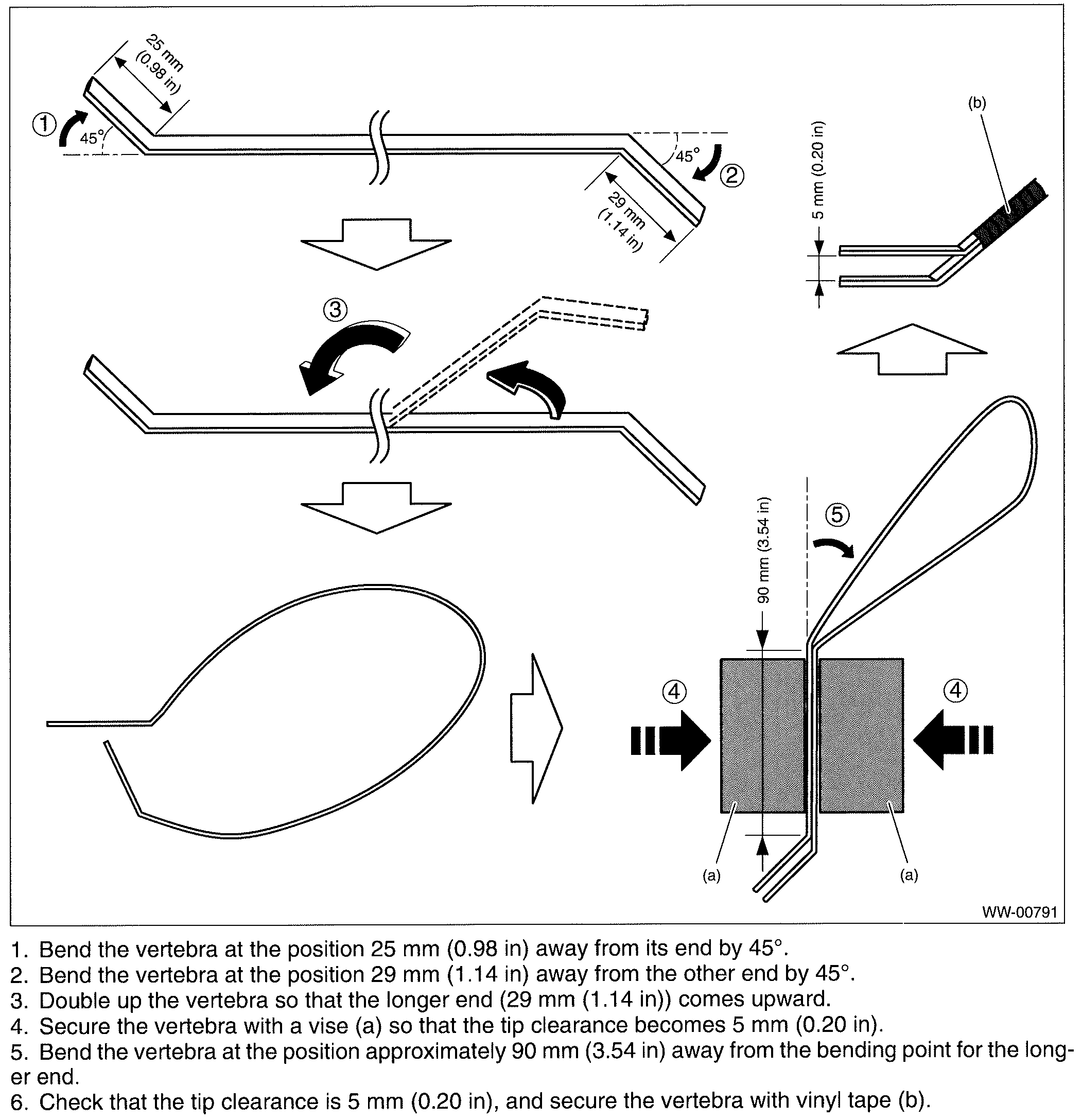

Fig 2: Steps Of Making A Front Washer Nozzle Adjustment Tool

Courtesy of SUBARU OF AMERICA, INC.
