Front Wiper

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

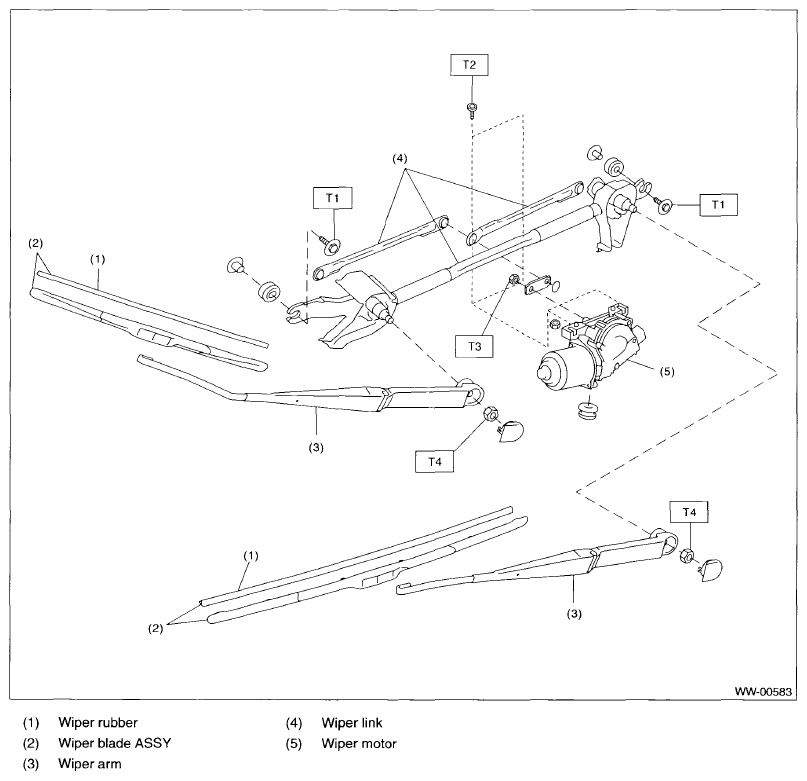

Fig 1: Exploded View Of Front Wiper With Torque Specification

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.0 (0.61, 4.4)

T2: 7.5 (0.76, 5.5)

T3: < Ref. to INSTALLATION , Front Wiper Motor and Link. >

T4: 22 (2.24, 16.2)
