Engine, Supporting In Installed Position: Procedure
WARNING: This page is about a different car, the 2018 Audi A6 Quattro, 2017 Audi A6 Quattro, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Risk of accident due to the engine weight shifting.
- The transmission and tunnel crossmember must be installed for the support procedure described in the following.
-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

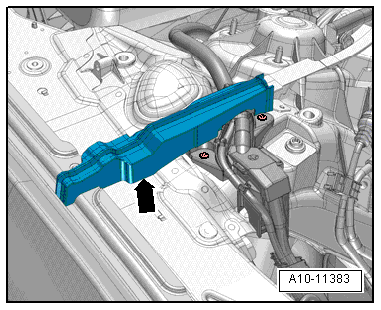

-- Remove the left and right foam block -arrow-.

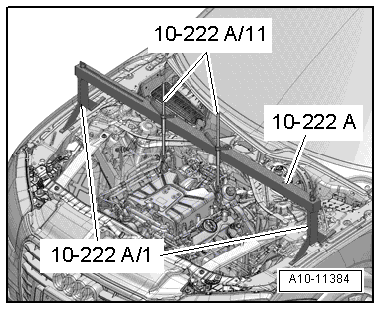

-- Position the :10-222A on the left and right suspension strut towers as illustrated.
-- Attach the spindles :10-222A/11 to the left and right engine lifting eyes.
-- Lightly pretension engine with spindles.
