Steering Column, Removing And Installing: Installing: Notes

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal. Note the following:

If the steering column on a vehicle with the steering locking system was replaced, use the bolt installed in the new steering column for the Electronic Steering Column Lock Control Module -J764-.

NOTE:

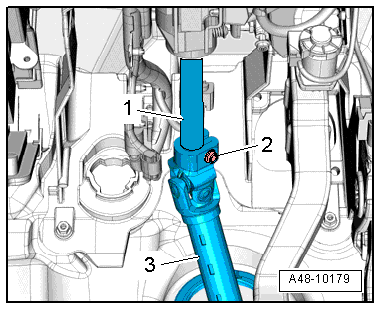

If the steering column was replaced, use the bolt installed in the new steering column for the Electronic Steering Column Lock Control Module -J764-.

Clean the threaded hole (for example, using a thread tap) before installing the new bolt -2-.

Courtesy of AUDI OF AMERICA, LLC
