Overview - Center Console: Notes

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Center Console. Refer to OVERVIEW - CENTER CONSOLE .

Center Console Attachment. Refer to OVERVIEW - CENTER CONSOLE .

Center Console Storage Compartment. Refer to OVERVIEW - CENTER CONSOLE .

Center Console Rear Trim. Refer to OVERVIEW - CENTER CONSOLE .

Center Console Cupholder with Heating and Cooling Element. Refer to OVERVIEW - CENTER CONSOLE for the versions.

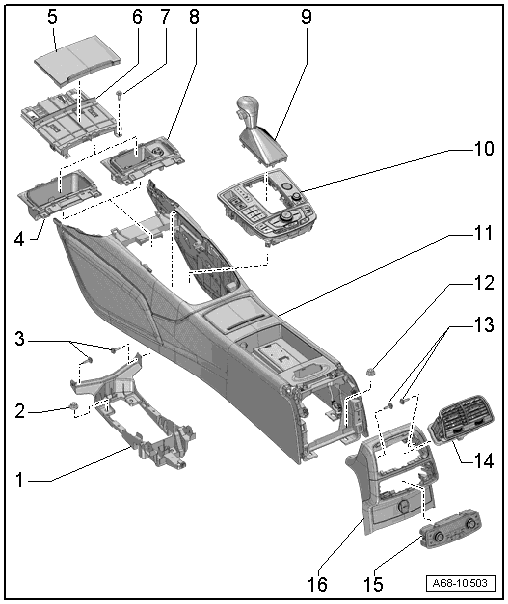

Fig 1: Exploded View Of Center Console

Courtesy of AUDI OF AMERICA, LLC

Bracket
- For the center console
- Removing and installing. Refer to CENTER CONSOLE BRACKET, REMOVING AND INSTALLING .
Nut
- Quantity: 4
- Tightening Specification. Refer to SELECTOR LEVER HANDLE, REMOVING AND INSTALLING or OVERVIEW - SELECTOR MECHANISM /SELECTOR LEVER HANDLE, REMOVING AND INSTALLING .
Bolt
- 3 Nm
- Quantity: 4
Storage Compartment
- Removing and installing. Refer to FRONT ASHTRAY, REMOVING AND INSTALLING .
Trim
- For the front ashtray/storage compartment
- Attach trim to the cover and press on it until it audibly engages
- Removing and installing. Refer to FRONT ASHTRAY TRIM, REMOVING AND INSTALLING .
Cap
- For the front ashtray/storage compartment
- Removing and installing. Refer to FRONT ASHTRAY, REMOVING AND INSTALLING .
Bolt
- 3 Nm
- Quantity: 2
Front Ashtray
- Removing and installing. Refer to FRONT ASHTRAY, REMOVING AND INSTALLING .
Gearshift Lever/Selector Lever
- Removing and installing. Refer to SELECTOR LEVER HANDLE, REMOVING AND INSTALLING or SELECTOR LEVER HANDLE, REMOVING AND INSTALLING .
Insert
- For the center console
- Removing and installing. Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .
- Replace damaged or deformed clips
- Press the center console insert in until it audibly locks into place.
- Multimedia System Control Head -E380-, Removing And Installing. Refer to MULTIMEDIA SYSTEM CONTROL HEAD -E380-, REMOVING AND INSTALLING, QW1 .
Center Console
- Removing and installing. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .
Nut
- 4 Nm
- Quantity: 2
- Tightening Specification for vehicles with a center armrest OVERVIEW - FRONT CENTER ARMREST
Screws
- 3 Nm
Rear Vent
- Removing and installing. Refer to CENTER CONSOLE REAR TRIM, REMOVING AND INSTALLING .
- Replace damaged or deformed clips
- Insert and press in all the way into the installation opening
Rear A/C Display Control Head -E265-
- Equipped on some models
- Removing And Installing. Refer to REAR A/C DISPLAY CONTROL HEAD -E265-, REMOVING AND INSTALLING .
Rear Cover
- For the center console
- Overview. Refer to OVERVIEW - CENTER CONSOLE .
