Left And Right Front Midrange Speaker -R103- / -R104-, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the front door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .

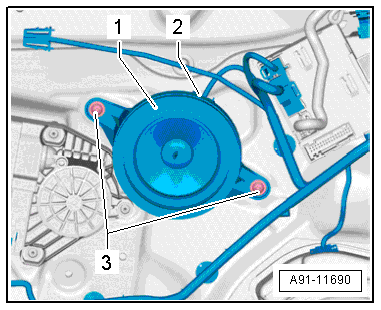

-- Release and disconnect the connector -2- from the Left Front Midrange Speaker -R103- -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -3-.

-- Remove the Left Front Mid-Range Speaker -R103- -1-.
