Digital Sound System Control Module -J525-, REMOVING AND INSTALLING, BANG & OLUFSEN, THROUGH MY 2014: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Open the left storage compartment in the luggage compartment.
The bracket with the Digital Sound System Control Module -J525- must be removed first.
-- Release and disconnect the connectors from the Digital Sound System Control Module -J525- -2-.
-- Insert the :VAS6223/9 -1- onto the MOST bus connector -2-.

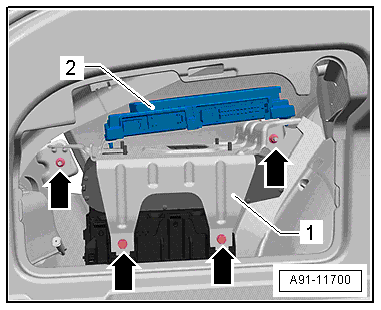

-- Remove the nuts and screws -arrows- on the bracket -1- and remove the Digital Sound System Control Module -J525- -2- with the bracket -1-.
-- Remove the bolts -arrows- and remove the Digital Sound System Control Module -J525- -1- from the bracket -2-.
