Digital Sound System Control Module -J525-, REMOVING AND INSTALLING, BANG & OLUFSEN, FROM MY 2015: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the left luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

The bracket with the Digital Sound System Control Module -J525- must be removed first.

-- If equipped, remove the trailer hitch lever. Refer to OVERVIEW - TRAILER HITCH .

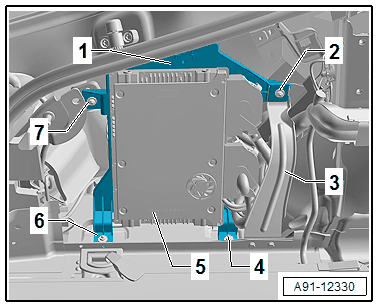

-- Remove the nuts -4, 6 and 7- and the screw -2- on the bracket -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the brace -3-.

-- Pivot the Digital Sound System Control Module -J525- -5- with the bracket -1- into the luggage compartment.

-- Release and disconnect the connectors from the Digital Sound System Control Module -J525- -5-.

Courtesy of AUDI OF AMERICA, LLC

-- If equipped, release and disconnect the connectors from the TV Tuner -R78-.

-- Insert the :VAS6223/9 -1- onto the MOST bus connector -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Digital Sound System Control Module -J525- -5- with the bracket -1-.

It is not necessary to remove the TV Tuner -R78-.

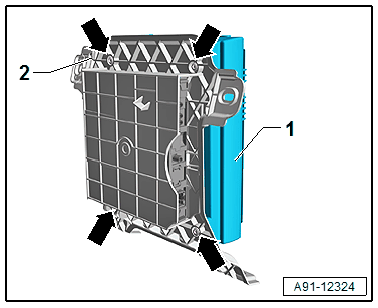

-- Remove the bolts -arrows- and remove the Digital Sound System Control Module -J525- -1- from the bracket -2-.

Courtesy of AUDI OF AMERICA, LLC
