Digital Sound System Control Module -J525-, REMOVING AND INSTALLING, BANG & OLUFSEN, FROM MY 2015: Notes
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Fiber-Optic Repair Set - Connector Protective Caps:VAS6223/9 .
- Torque Screwdriver :VAG1624

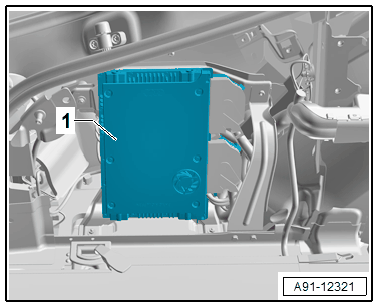

The Digital Sound System Control Module -J525- -1- is located behind the left luggage compartment trim panel.
NOTE:
If replacing the control module, select the "Replace control module" function for the corresponding control module. Refer to Vehicle Diagnostic Tester.
