Front Display Front And Rear Cover, Removing And Installing: Notes
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Danger of causing damage to the vehicle electronics
- Requirement: Make sure nothing, especially metal or other light weight particles, can get onto the display.
- Make sure also no oil, grease, silicone or other such materials can get onto the removed display, otherwise they can turn into steam and fog up the display.
- Touching electronic circuits with bare hands can lead to migration.
- ESD (electro static discharge) protection: Always follow standard DIN EN 613-40-5-1 when handling.
- Do not use any components or electronics that have fallen down.
- :VAS6613 . Refer to ESD Work Surface :VAS6613 .
The Front Information Display Control Head -J685- can be disconnected from the kinematics. The front and rear covers can be replaced individually if they are scratched or faulty.

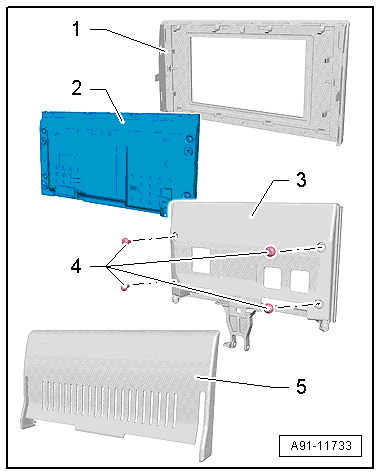

The Front Information Display Control Head -J685- consists of a front cover -1-, a display -2-, display support -3- and a rear cover -5-. The display and the display support are attached with screws -4- and the front and rear covers are clipped on.
The display is supplied installed with the mount. Refer to the Parts information. The front cover -1- and rear cover -5- can be ordered and replaced separately.
-- Turn off the ignition and all electrical equipment and remove the ignition key.
