Distance measurement:
The Following Display Appears:
The display shows how to stop the -VAS6350/2-. Press the corresponding button.
- Attach with Front Edge
- Attach with Rear Edge

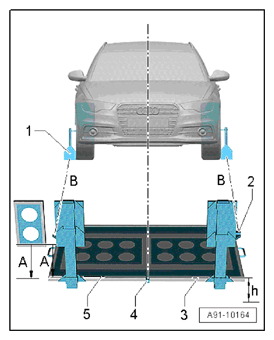

- Hold the -VAS6350/2- -2- flush in the bracket on one side of the -VAS6350A- calibration field (with rear edge). To do so, the -VAS6350/2- -2- must sit securely on the bracket.
- Press the measuring button briefly.
The laser switches on.
- Make sure that laser beam from -VAS6350/2- -2- hits the lower, enlarged part of paddle -1-.
If this is not the case, the paddles must be corrected accordingly via clamping screws on the -VAS6350/1-.
- Use one hand to secure the -VAS6350/2- in the bracket on the calibration field -VAS6350A- while the laser beam is visible on the paddle.
- Then press the measurement button for the distance measurement briefly.
- Repeat this measurement on the other side of the -VAS6350A-calibration field in the same way for the rear wheel.
The distance value must be the same on both sides.
If values are not identical:
- Align the -VAS6350A- with the -VAS6350A/6- long enough so that both sides are identical.
Pay attention when aligning the -VAS6350A- with -VAS6350A/6- that the -VAS6350/3- from the -VAS6350A/6- strikes the center of the Audi rings and the indicator of the level remains centered. Adjust if necessary.
- Make note of the distance dimension measured.
Dimension measurement -h-:
- Measure the height of the -VAS6350A- -2- calibration field, dimension -h-, from the surface of the -VAS6350A- -2- calibration field (not the aluminum frame) down to the floor. Measure the hole in the -VAS6350A- -2- calibration field.
Make sure the -VAS6350/2- -1- is adjusted correctly (attach with front edge).
The display shows how to stop the -VAS6350/2-. Press the corresponding button.
- Attach with Front Edge
- Attach with Rear Edge
Dimension -h- and the distance dimension must now be entered into the Vehicle Diagnostic Tester in "millimeters".
