Wheel Arch Height

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Park the vehicle on a level surface.
Empty the vehicle so that it is at "curb weight". (Empty the luggage compartment, load the spare tire, jack and service tools, and fill up the fuel tank.)
Set the steering wheel in a straight-ahead position, and stabilize the suspension by moving the vehicle in a straight line for 5 m (16 ft) or more.
Suspend a thread from the wheel arch (point "A" in the illustration below) and affix at a position directly above the center of wheel.

Measure the distance between the point "A" and the center of wheel.

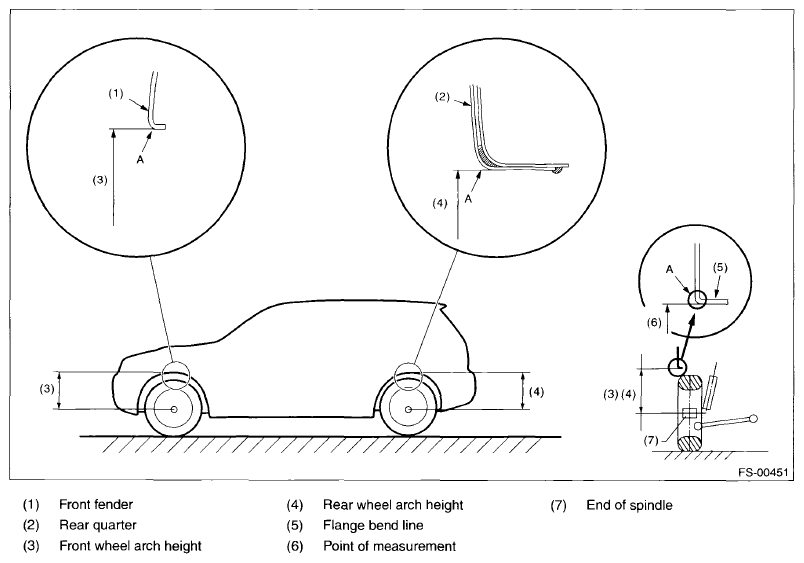

Fig 1: Measuring Distance Between Point "A" And Center Of Wheel

Courtesy of SUBARU OF AMERICA, INC.

WHEEL ARCH HEIGHT SPECIFICATION CHART

Wheel arch height specification mm (in) (Tolerance: ^{+12 mm}_{_24 mm} (^{+0.47 in}_{_0.94 in} ))
Model	All models
Front	445(17.5)
Rear	448(17.6)
