Auxiliary Blower Motor Speed Control: Removal
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Expedition or Navigator shown, Expedition EL or Navigator L similar.
- 1.
Remove the Right Hand(RH) quarter trim panel access panel.
 Courtesy of FORD MOTOR COMPANY
|
- 2.

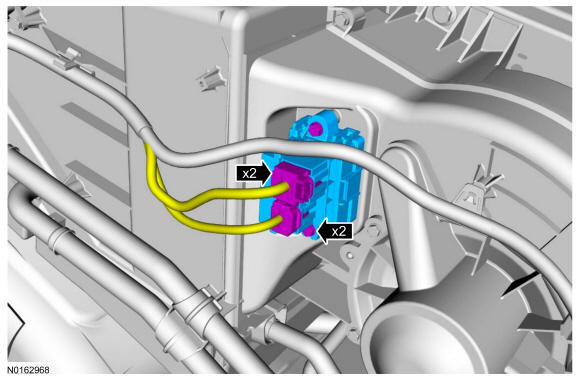

Remove the blower motor speed control.
- Disconnect the blower motor speed control electrical connectors.
- Remove the blower motor speed control screws.
- Remove the blower motor speed control.
 Courtesy of FORD MOTOR COMPANY
|
