Transfer Case
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

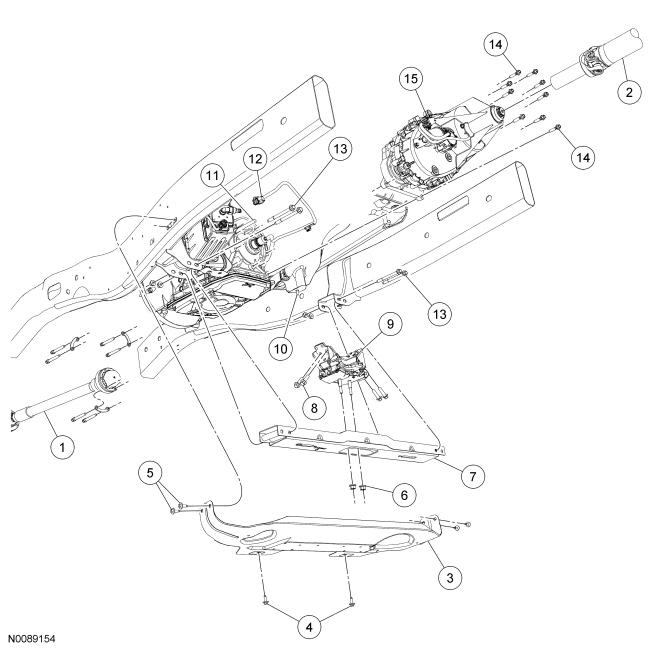

| Item | Part Number | Description |
|---|---|---|
| 1 | 4A376 | Front driveshaft |
| 2 | 4602 | Rear driveshaft |
| 3 | 7E063 | Skid plate |
| 4 | W503932-S-S | Skid plate-to-crossmember bolts (2 required) |
| 5 | W503932-S-S | Skid plate-to-frame bolts (4 required) |
| 6 | N621945-S-S | Transmission mount nut (2 required) |
| 7 | 7640124 | Crossmember |
| 8 | W700140-S-S | Transmission mount bolt (4 required) |
| 9 | 6068 | Transmission mount |
| 10 | - | Heat shield bolt (2 required) |
| 11 | 7D494 | Vent hose |
| 12 | 14489 | Shift motor electrical connector |
| 13 | W637077-S-S | Crossmember bolts (4 required) |

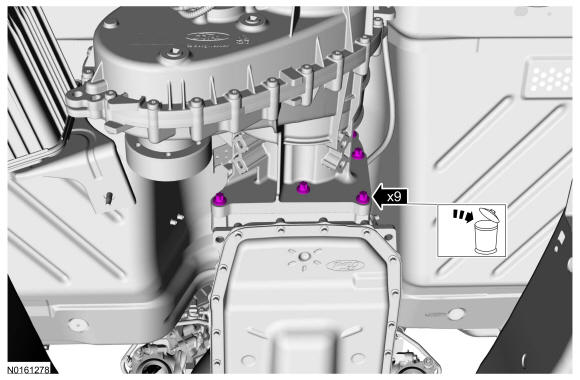

| 14 | 7A443 | Transfer case-to-transmission bolts (9 required) |
| 15 | 7A195 | Transfer case |
- 1.
With the vehicle in NEUTRAL, position it on a hoist. Refer to Jacking and Lifting .
- 2.
If equipped, remove the 2 skid plate-to-crossmember bolts and the 4 skid plate-to-frame bolts and remove the skid plate.
- 4.
Drain the fluid, if the transfer case is to be disassembled.- Install the drain plug when finished draining.
- 5.
Remove the front driveshaft. Refer to Driveshaft .
- 6.
Remove the rear driveshaft. Refer to Driveshaft .
- 7.
Disconnect the shift motor electrical connector and detach the harness connector from the transfer case.
- 12.
Remove the exhaust y-pipe - dual catalytic converter. Refer to Exhaust System .

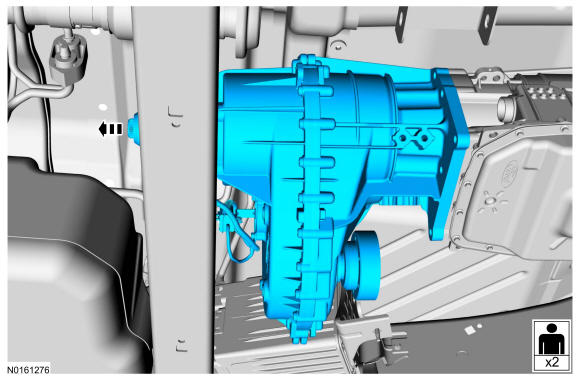

- 15.NOTE: The transfer case will need to be positioned on top of the crossmember and will require the help of an assistant.
Separate the transfer case from the transmission and move the transfer case rearward.

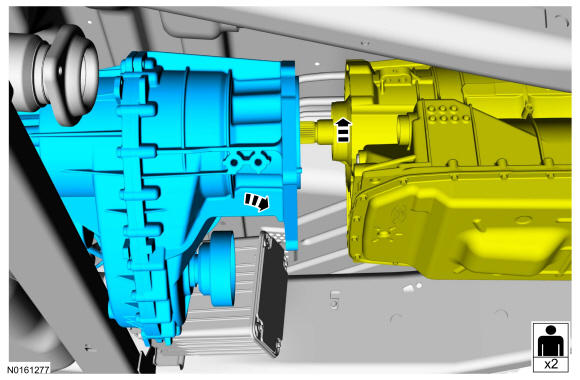

- 16.NOTE: An assistant will be required to remove the transfer case.
Raise the transmission for clearance. Remove the transfer case and lower it from the vehicle.
