Fuel Pump Control Module: Removal
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
- 2.

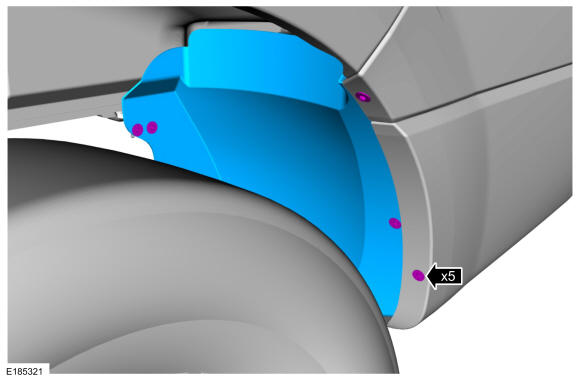

Remove the LR splash shield retainers and then remove the LR splash shield.
 Courtesy of FORD MOTOR COMPANY
|
- 3.

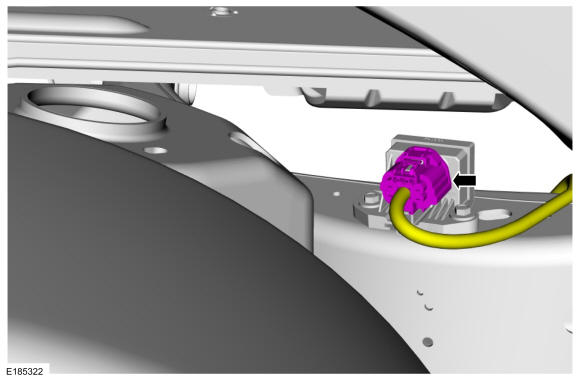

Disconnect the FPCM electrical connector.
 Courtesy of FORD MOTOR COMPANY
|
- 4.

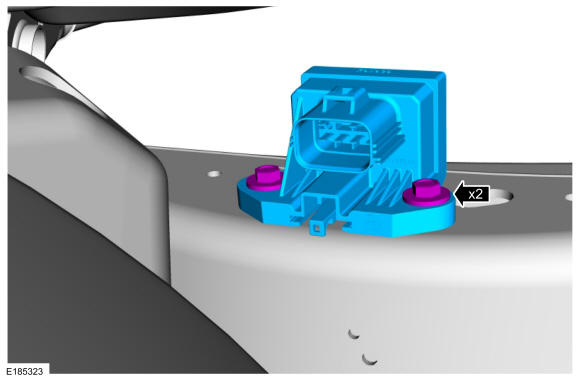

Remove the FPCM bolts and then remove the FPCM.
 Courtesy of FORD MOTOR COMPANY
|
