Intake Manifold: Installation
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
- 1.NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.

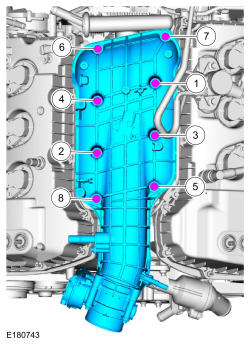

Using new gaskets, install the intake manifold and tighten the 8 bolts in the sequence shown.
- Stage 1: Tighten to 10 Nm (89 lb-in).
- Stage 2: Tighten an additional 45 degrees.
- 2.
- Position back the vacuum solenoid assembly and install retaining plate and pin-type retainer.
- Connect the vacuum hose.
- 4.

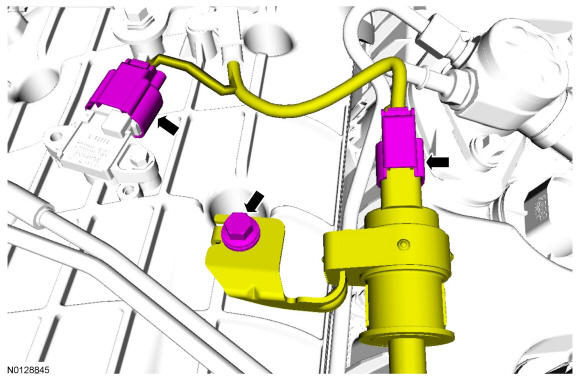

Position back the EVAP canister purge valve and install the bolt. Connect the MAP sensor and the EVAP canister purge valve electrical connectors.- Tighten to 10 Nm (89 lb-in).
- 5.

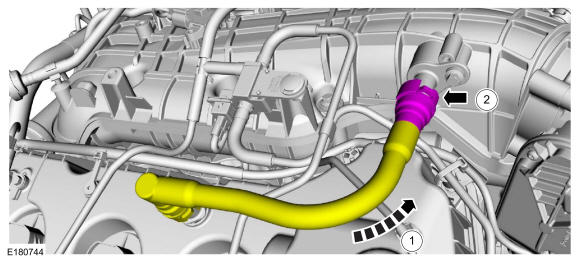

- Connect the fuel vapor tube to the intake manifold. Fuel System General Information
- Install the vacuum hose and clamp.
- Use the General Equipment: - Hose Clamp Remover/Installer
- 7.

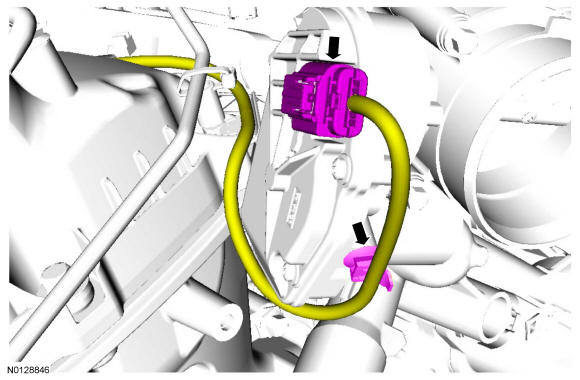

Connect the TB electrical connector.- Attach the TB electrical connector wiring harness pin-type retainer to the TB.
- 9.

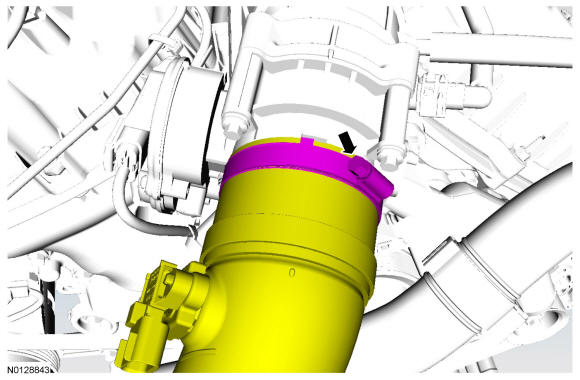

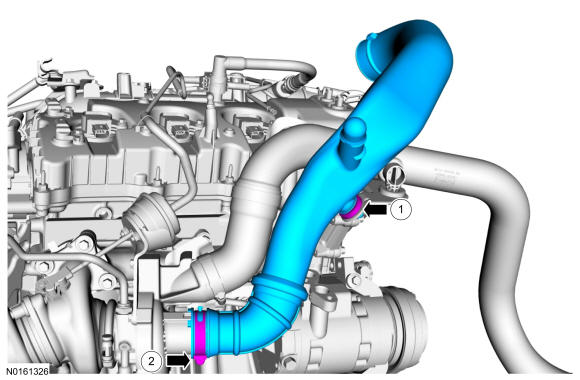

Install the turbocharger inlet pipe.- 1.
Attach the turbocharger inlet pipe to the bracket.
- 2.
Tighten the turbocharger inlet pipe clamp to 5.0 Nm (44 lb-in).
- 1.
- 11.
Install the Air Cleaner Outlet Pipe, Refer to: Intake Air Distribution and Filtering .
