System Operation
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
Lubrication System
The engine lubrication system is of the force-feed type in which oil is supplied under full pressure to the crankshaft, connecting rod bearings, piston cooling jets, turbochargers, timing chain tensioners and VCT solenoids. The flow of oil to the valve tappets and valve train is controlled by a restricting orifice located in the cylinder head, front camshaft cap.

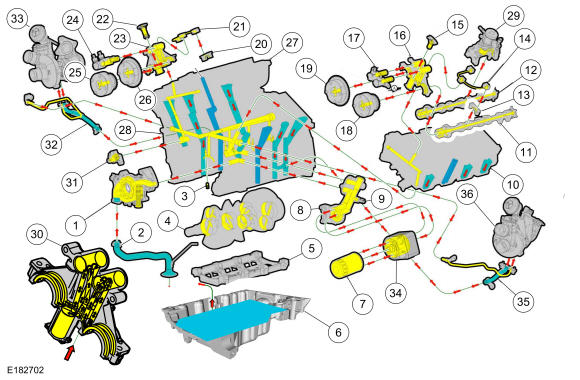

| Item | Description |
|---|---|
| 1 | Oil pump |
| 2 | Oil pump screen and pickup tube |
| 3 | Piston oil cool valve |
| 4 | Crankshaft |
| 5 | Engine main bearing cap support |
| 6 | Oil pan |
| 7 | Oil filter |
| 8 | Oil filter adapter |
| 9 | Oil pressure switch |
| 10 | LH cylinder head |
| 11 | Exhaust camshaft |
| 12 | Intake camshaft |
| 13 | LH camshaft cap |
| 14 | LH valve train oil feed tube |
| 15 | LH secondary timing chain tensioner |
| 16 | LH camshaft mega cap |
| 17 | LH intake and exhaust camshaft Variable Camshaft Timing (VCT) oil control solenoids |
| 18 | LH exhaust camshaft VCT |
| 19 | LH intake camshaft VCT |
| 20 | RH camshaft cap |
| 21 | RH valve train oil feed tube |
| 22 | RH secondary timing chain tensioner |
| 23 | RH camshaft mega cap |
| 24 | RH intake and exhaust camshaft VCT oil control solenoids |
| 25 | RH exhaust camshaft VCT |
| 26 | RH intake camshaft VCT |
| 27 | RH cylinder head |
| 28 | Cylinder block |
| 29 | High-pressure fuel pump |
| 30 | LH camshaft mega cap (detailed view) |
| 31 | Primary timing chain tensioner |
| 32 | RH turbocharger oil return tube |
| 33 | RH turbocharger |
| 34 | Oil cooler |
| 35 | LH turbocharger oil return tube |
| 36 | LH turbocharger |
