Removal And Installation

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

1.

NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

Using a diagnostic scan tool, begin the Programmable Module Installation (PMI) process for the Global Positioning System Module (GPSM) following the on-screen instructions.

2.

Remove the FCIM. Refer to, Front Controls Interface Module (FCIM) .

3.

Remove the defroster grille panel.

Courtesy of FORD MOTOR COMPANY

4.

Remove the 4 screws and the instrument panel speaker cover.
1. 1.

  Disconnect the electrical connector.
1. 2.

  To install, tighten to 2.5 Nm (23 lb-in).

Courtesy of FORD MOTOR COMPANY

5.

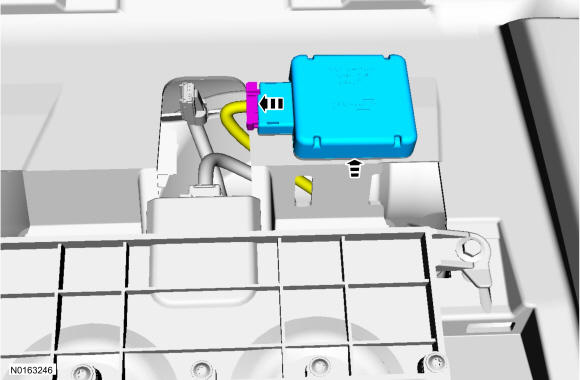

Unclip and remove the GPSM.
- Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

6.

To install, reverse the removal procedure.
- NOTE: This step is only required if the GPSM is being replaced.

  Using a diagnostic scan tool, complete the PMI process for the GPSM following the on-screen instructions.
