Seat - Second Row, 40 Percent: Notes
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RH shown, LH similar.

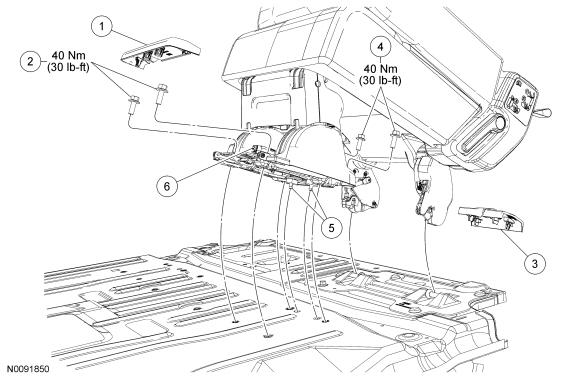

| Item | Part Number | Description |
|---|---|---|
| 1 | 638B30A | Seat-to-floor bolt front cover |
| 2 | W708175 | Seat-to-floor front bolts (2 required) |
| 3 | 638B30B | Seat-to-floor bolt rear cover |
| 4 | W708175 | Seat-to-floor rear bolts (2 required) |
| 5 | - | Locator pins (part of 63161 frame assembly) |
| 6 | - | Electrical connector (part of 14B510) (if equipped) |
