Seat - Front: Removal
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Navigator driver seat shown, all others similar.
- 1.
Depower the SRS. Refer to SRS Depowering and Repowering in the General Procedures portion of Supplemental Restraint System .
- 2.NOTE: To avoid damage, do not pull from the inboard side of the front seat cushion panel shield.
Remove the front seat cushion panel shield.
- 1.
Release the upper retaining clips working from the outboard side toward inboard side.
- 2.
Release the lower retaining clips.
- 1.
- 4.

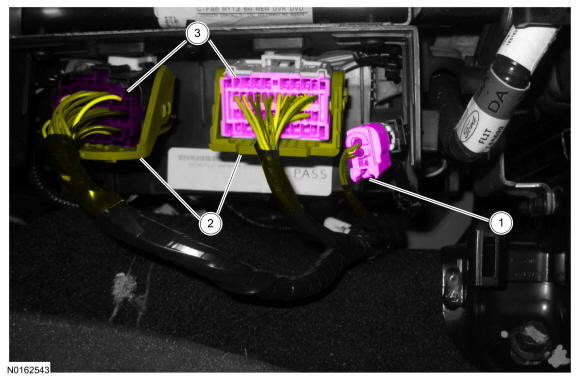

Disconnect the seat harness electrical connectors.- 1.
Release the locking button and disconnect the side airbag electrical connector.
- 2.
Release the locking tab(s) and rotate the connector position assurance lever(s) fully.
- 3.
Slightly tip the connector(s) away and disconnect.
- 1.
- 7.NOTE: Follow the unique instructions or graphics for this step in the installation.

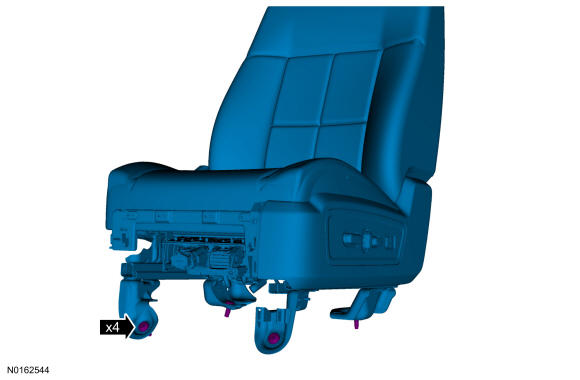

Remove the bolts and the front seat.
