Seat - Front: Installation

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

1.

To install, reverse the removal procedure.

2.

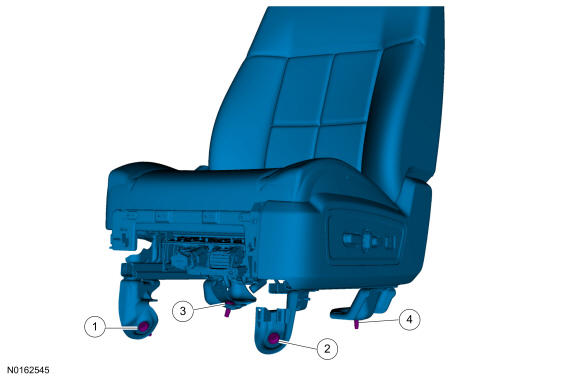

Install the front seat bolts in the following sequence:
1. 1.

  Install the front seat front inboard bolt.
  - Tighten to 40 Nm (30 lb-ft).
1. 2.

  Install the front seat front outboard bolt.
  - Tighten to 40 Nm (30 lb-ft).
1. 3.

  Install the front seat rear inboard bolt.
  - Tighten to 40 Nm (30 lb-ft).
1. 4.

  Install the front seat rear outboard bolt.
  - Tighten to 40 Nm (30 lb-ft).

Courtesy of FORD MOTOR COMPANY

3.

Repower the SRS. Refer to SRS Depowering and Repowering in the General Procedures portion of Supplemental Restraint System .
