Head Restraint Guide Sleeve: Removal

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Typical head restraint guide sleeve shown, others similar.

1.

Depress the locking tabs and remove the head restraint.

Courtesy of FORD MOTOR COMPANY

2.

NOTE: When a head restraint guide sleeve has been removed from a seat, a new head restraint guide sleeve must be installed.

NOTE: Follow the unique instructions or graphic for this step in the installation

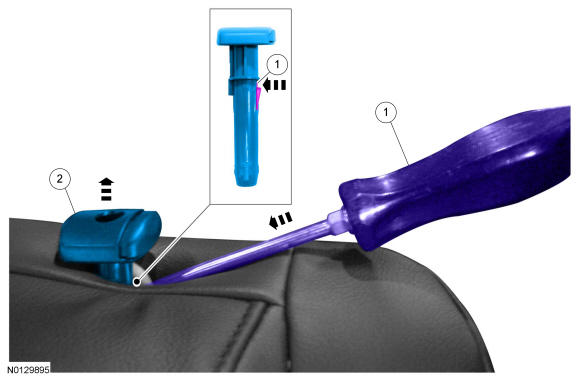

Remove the head restraint guide sleeve in the following sequence:
1. 1.

  Using the screwdriver, press the head restraint guide sleeve retaining tab inward approximately 5 mm (0.2 in).
1. 2.

  While pressing the head restraint guide sleeve retaining tab inward, pull upward on the head restraint guide sleeve and remove it from the backrest frame crossmember.

Courtesy of FORD MOTOR COMPANY
