Tire Pressure Monitor (TPM) Module: Installation

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

1.

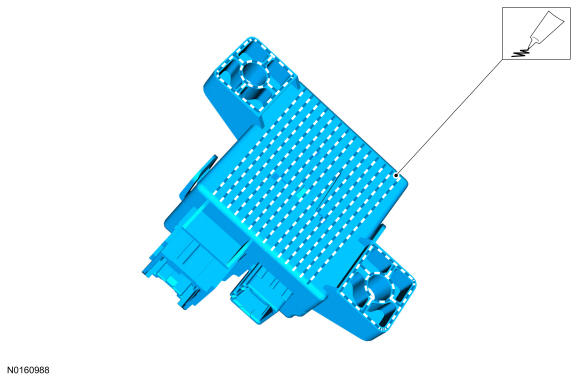

NOTE: When installing the TPM module, use 3M Duramix ® 4747 Super Fast Adhesive to secure the TPM module to the headliner in approximately the same position and orientation on the headliner.

Apply adhesive and secure the TPM module to the headliner.

Courtesy of FORD MOTOR COMPANY

2.

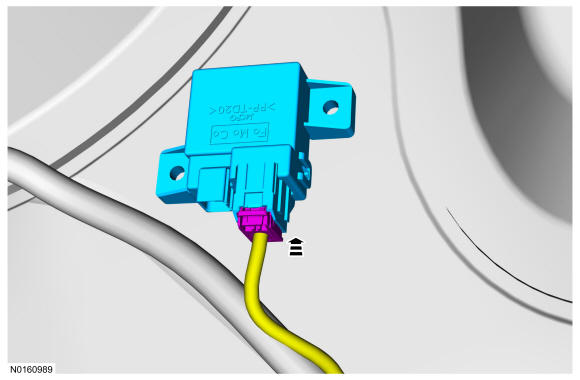

Connect the TPM module electrical connector.

Courtesy of FORD MOTOR COMPANY

3.

Install the headliner. Refer to Interior Trim and Ornamentation .
