Non-Turbo Model

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission assembly from the vehicle. < Ref. to REMOVAL , Automatic Transmission Assembly. >
  2. Use the ST to lock the crankshaft, and remove the drive plate.

    ST 498497300 CRANKSHAFT STOPPER

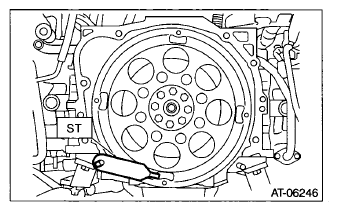

    Fig 1: Locking Crankshaft Using ST (Non-Turbo Model)
    G07665577Courtesy of SUBARU OF AMERICA, INC.
