Overdrive Clutch Assembly: Disassembly
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
- 1.
Position the O/D clutch assembly in the Clutch End Play Gauge and remove the T3 thrust bearing.
 Courtesy of FORD MOTOR COMPANY
|
- 2.
Remove the O/D clutch pack snap ring.
 Courtesy of FORD MOTOR COMPANY
|
- 3.
Remove the O/D clutch pack.
 Courtesy of FORD MOTOR COMPANY
|
- 4.
Using the Spring Washer Compressor and a press, remove and discard the O/D clutch balance piston retaining ring.
 Courtesy of FORD MOTOR COMPANY
|
- 5.
Remove the O/D clutch balance piston.
 Courtesy of FORD MOTOR COMPANY
|
- 6.
Remove the O/D clutch return spring.
 Courtesy of FORD MOTOR COMPANY
|
- 7.
Remove the O/D clutch apply piston.
 Courtesy of FORD MOTOR COMPANY
|
- 8.
Remove and discard the outer O-ring seal on the O/D clutch balance piston.
 Courtesy of FORD MOTOR COMPANY
|

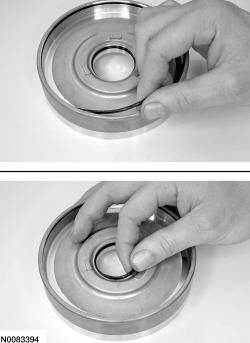

- 9.
Remove and discard both the inner (one large and one small) O-ring seals on the O/D clutch apply piston.
 Courtesy of FORD MOTOR COMPANY
|
- 10.
Remove and discard the Teflon ® seals.
 Courtesy of FORD MOTOR COMPANY
|
