Selector Lever Bezel: Installation
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
All vehicles

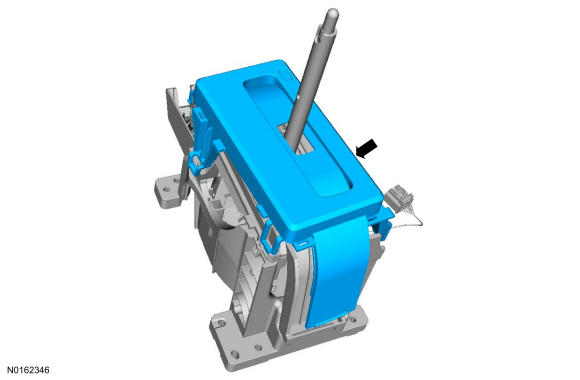

- 1.
Position the selector lever bezel on the selector lever assembly.
 Courtesy of FORD MOTOR COMPANY
|
Navigator
- 2.
Attach and connect the LED electrical connector.
 Courtesy of FORD MOTOR COMPANY
|
Expedition
- 3.
Connect the lamp connectors to the bezel.
 Courtesy of FORD MOTOR COMPANY
|
All vehicles

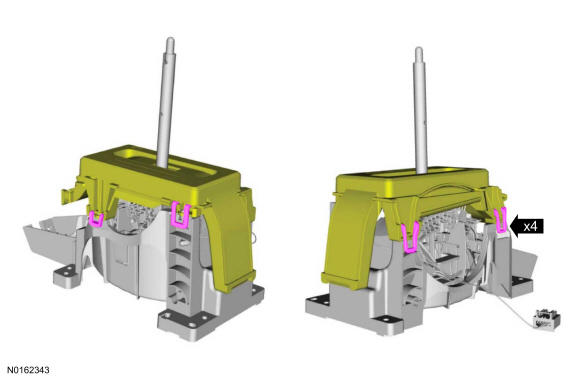

- 4.
Install the selector lever bezel onto the selector lever housing.
 Courtesy of FORD MOTOR COMPANY
|
- 5.
Install the selector lever knob. Refer to Selector Lever Knob .
