External Controls Component Location
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

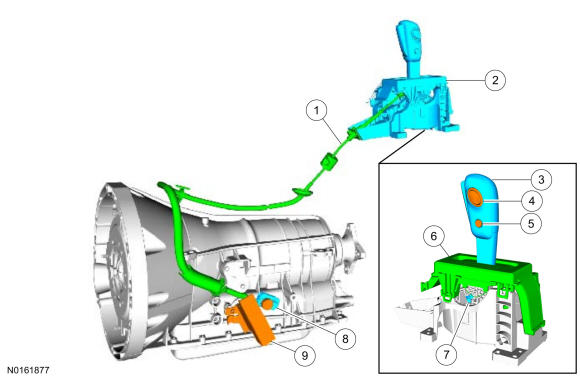

External Controls Component Location - Floor Shift
| Item | Part Number | Description |
|---|---|---|
| 1 | 7E395 7E395 | Selector lever cable |
| 2 | 7210 7210 | Selector lever assembly |
| 3 | 7213 7213 | Selector lever knob |
| 4 | - | SelectShift™ switch |
| 5 | - | Tow/Haul switch |
| 6 | 7D443 7D443 | Selector lever bezel |
| 7 | - | BSIA |
| 8 | - | Selector lever cable adjuster |
| 9 | 7B229 7B229 | Heat shield |

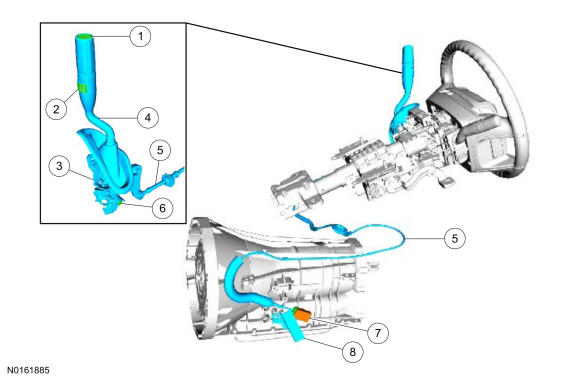

External Controls Component Location - Column Shift
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Tow/Haul switch |
| 2 | - | SelectShift™ switch |
| 3 | 7210 7210 | Selector lever mechanism |
| 4 | 7210 7210 | Selector lever |
| 5 | 7E395 7E395 | Selector lever cable |
| 6 | - | BSIA |
| 7 | - | Selector lever cable adjuster |
| 8 | 7B229 7B229 | Heat shield |
