Fuel Rail Pressure (FRP) Sensor: Installation

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

1.

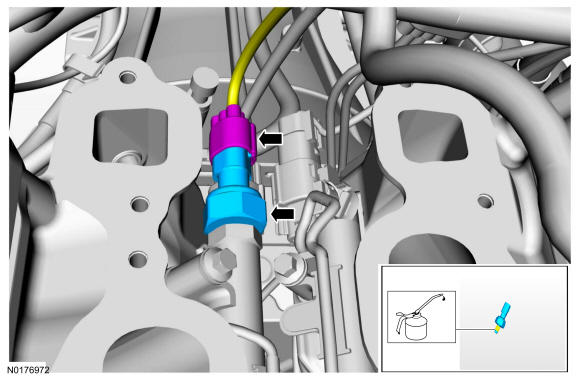

NOTE: Lubricate the thread area of the new FRP sensor with clean engine oil prior to installation.
- Install the FRP sensor. Tighten to 33 Nm (24 lb.ft).
- Connect the FRP sensor electrical connector.

Courtesy of FORD MOTOR COMPANY

2.

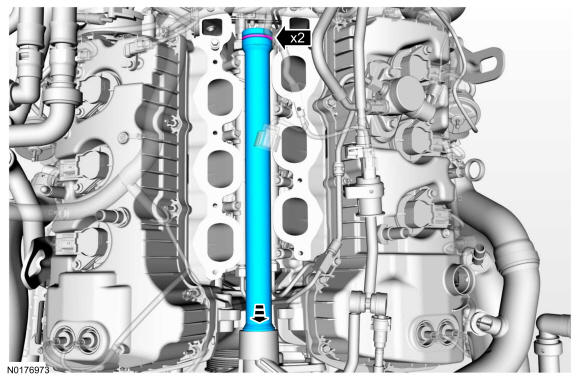

Install the coolant inlet pipe.
- Install new O-ring seals.

Courtesy of FORD MOTOR COMPANY

3.

Install the coolant crossover manifold assembly. Refer to Engine Cooling .
