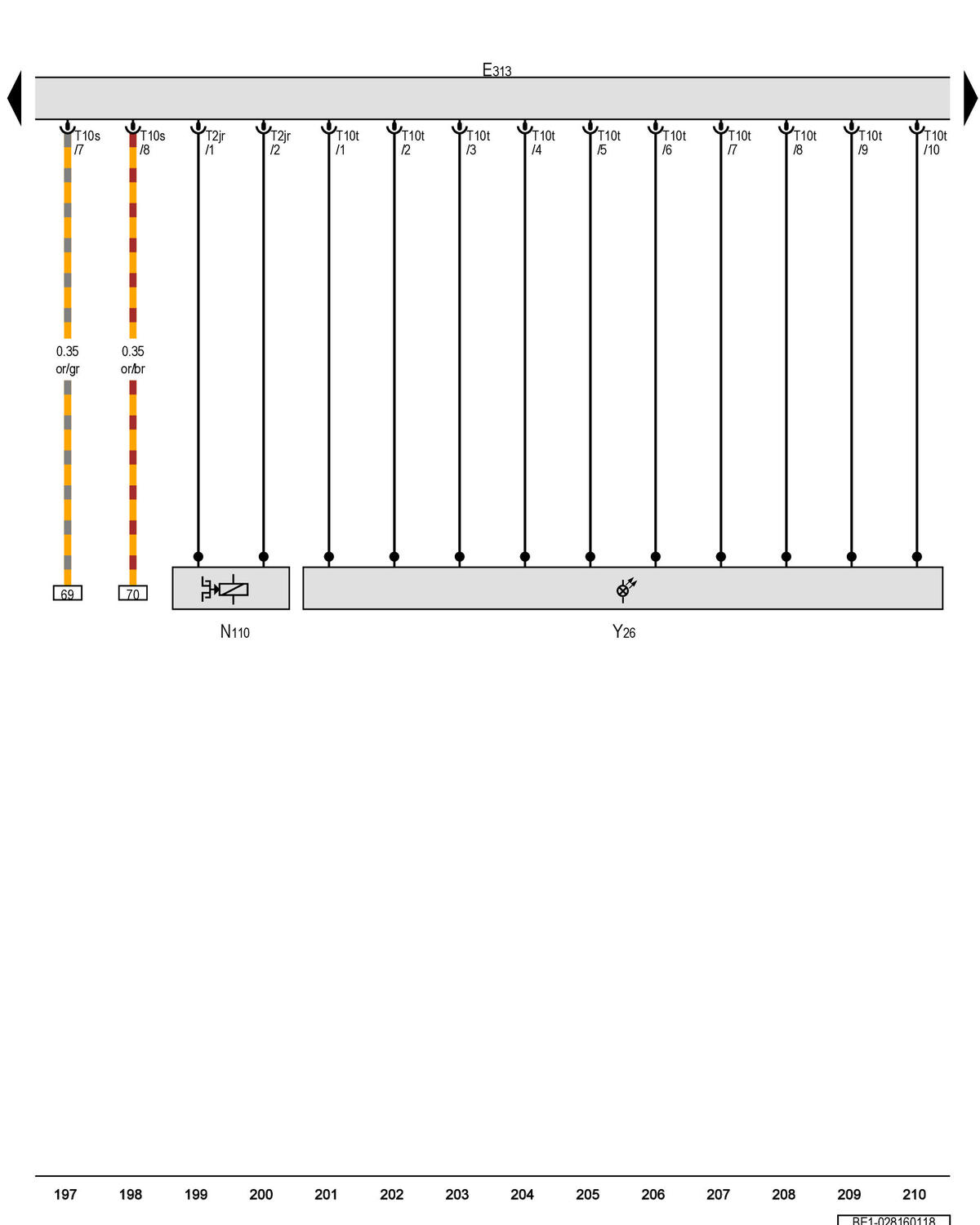

Selector Lever, Shift Lock Solenoid, Selector Lever Transmission Range Position Display Unit: Notes

GWWBE1-028160118
