Abs Control Module And Abs Hydraulic Unit, Removing And Installing, RHD: Notes

Special Tools And Workshop Equipment Required

• Torque Wrench 1331 5-50 Nm:V.A.G 1331
• Open Ring Spanner Insert - AF 11mm:V.A.G 1410/6
• Torque Wrench - Universal Joint :V.A.G 1410/7
• Mini Torque Wrench:VAS 6854
• Brake Pedal Actuator:V.A.G 1869/2  .
• Torque Wrench - Assembly Tool :V.A.G 1410/8

Special Tools And Workshop Equipment Required

• Torque Wrench 1331 Insert - Ring Wrench - 11mm & 17mm:V.A.G 1331/2
• Brake Charger/Bleeder Unit:VAS 5234
  Fig 2: Identifying Brake Charger/Bleeder Unit

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Engine Bung Set:VAS 6122
  Fig 3: Engine Bung Set

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Plugs assembly part 5Q0 698 311

1 -  M10 Plug

2 -  M12 Plug

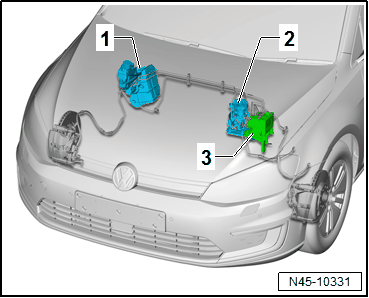

Component Location:

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The ABS Control Module -J104- is attached to the ABS Hydraulic Unit -N55- and is located inside the engine compartment on the left side.

1 -  Brake Booster with Master Brake Cylinder

2 -  Brake System Pressure Reservoir -VX70-

3 -  ABS Control Module -J104- with the ABS Hydraulic Unit -N55-
