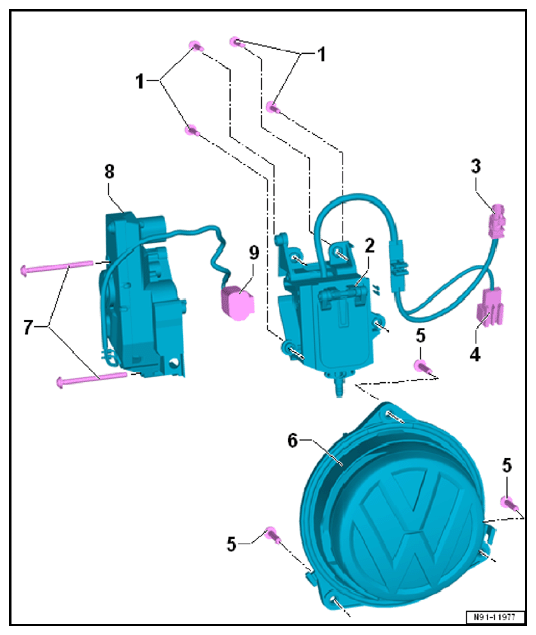

8.3 Overview - Rearview Camera System

  1. Bolt
    • 2.5 Nm
    • Quantity: 4
  2. Rearview Camera Housing
    • Removing and installing.
  3. Connector
  4. Connector
  5. Bolt
    • 4 Nm
    • Quantity: 3
  6. Pivoting Emblem
    • Removing and installing. Refer to Body Exterior (Rear Lid; Mechanism, Removing and Installing).
  7. Bolt
    • 1.6 Nm
    • Quantity: 2
  8. Pivoting Motor
    • Removing and installing.
  9. Connector
G12354193
