Removal And Installation

WARNING: This page is about a different car, the 2017 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the passenger side lower instrument panel insulator.
- Disconnect the ambient lighting electrical connector (if equipped).
- Remove the passenger side lower instrument panel insulator pin-type retainers and remove the insulator.

Courtesy of FORD MOTOR COMPANY

2.

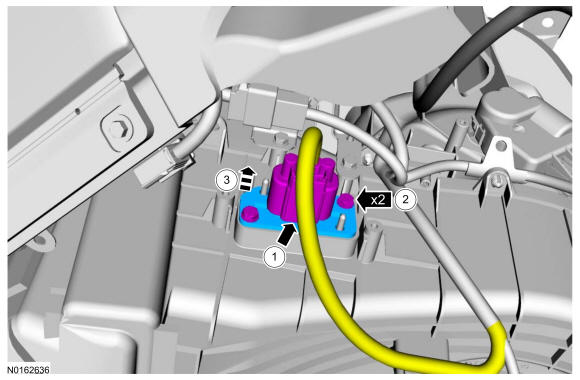

Remove the blower motor resistor.
- 1.

  Disconnect the blower motor resistor electrical connector.
- 2.

  Remove the blower motor resistor screws.
- 3.

  Remove the blower motor resistor.

Courtesy of FORD MOTOR COMPANY

3.

To install, reverse the removal procedure.
