Sensor Electronics Control Module, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 Audi S8, 2018 Audi A8 Quattro, 2017 Audi S8, 2017 Audi A8 Quattro, and 2016 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.

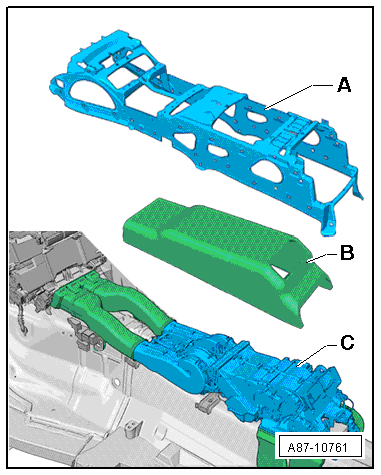

-- Remove the center console support -A-. Refer to Center Console Bracket, Removing and Installing .
-- Remove the rear air distribution housing -C-. Refer to the appropriate service information .
-- Equipment levels with rear A/C unit: free up the wires for the rear A/C sensors and lift the rear A/C unit as far as possible from the center tunnel.
-- Disconnect the connector -3-.
-- Remove the nuts -1-.
-- Remove the Sensor Electronics Control Module -J849- -2-.
