Sensor Electronics Control Module, Removing And Installing: Installing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 Audi S8, 2018 Audi A8 Quattro, 2017 Audi S8, 2017 Audi A8 Quattro, and 2016 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal. Note the following:

CAUTION:

Risk of destroying the Sensor Electronics Control Module -J849-.

Protect the Sensor Electronics Control Module -J849- from bumps or impact: A Sensor Electronics Control Module -J849- that has fallen to the ground can no longer be used.

-- Ensure a stress-free seating on the mounting.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

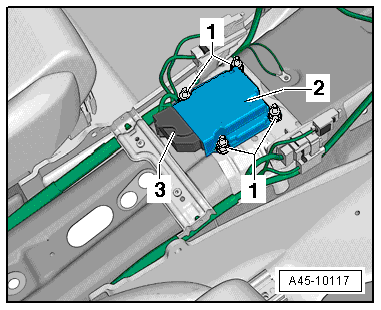

To install the Sensor Electronics Control Module -J849- -2- free of tension, install all the nuts -1- loosely and then tighten them diagonally.

-- If the Sensor Electronics Control Module -J849- is being replaced, select the "Replace" function for the Sensor Electronics Control Module -J849- on the Vehicle Diagnostic Tester in Guided Functions .
