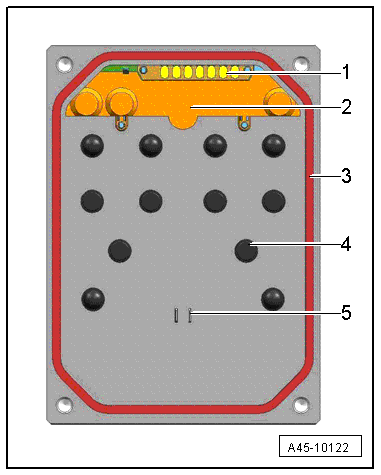

ABS Control Module -J104-
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 Audi S8, 2018 Audi A8 Quattro, 2017 Audi S8, 2017 Audi A8 Quattro, and 2016 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.
- Pressure Sensor Contact
- Do not touch the contacts
- The illustration depends on the model
- Pressure Sensor
- Cannot be replaced
- Must not be changed or damaged
- The illustration depends on the model
- Seal
- Must not be pulled out or raised up
- Cannot be replaced
- Valve Bodies
- Must not be damaged or bent
- Do not use any tools
- Pump Motor Contact
- Must not be damaged or bent
