Removal And Installation

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

NOTE: Removal steps in this procedure may contain installation details.

1.

NOTE: The current PMI process must begin with the current VDM installed. If the current VDM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the VDM following the on-screen instructions.

2.

Remove the floor console. Refer to Instrument Panel and Console .

3.

NOTE: The Vehicle Dynamics Module (VDM) is mounted to the bottom side of the front floor console.

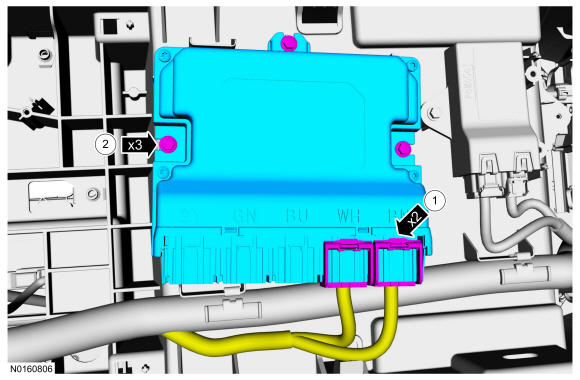

1. 1.

  Disconnect the 2 VDM electrical connectors.
1. 2.

  Remove the 3 VDM screws and the module.
  - To install, tighten to 3 Nm (27 lb-in).

Courtesy of FORD MOTOR COMPANY

Installation

1.

To install, reverse the removal procedure.

2.

Using a diagnostic scan tool, complete the PMI process for the VDM following the on-screen instructions.

3.

Calibrate the VDM. Connect the scan tool and carry out the Ride Height Calibration routine. Follow the scan tool directions.
