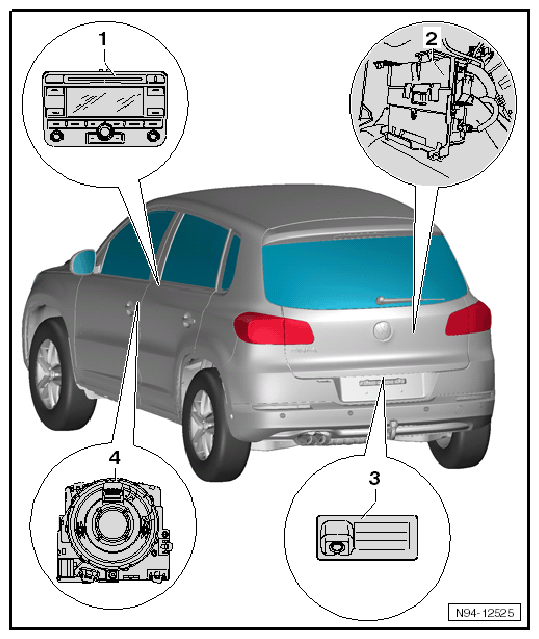

20.2 Overview - Rearview Camera System
- Radio/Navigation Display Unit Control Module - J503-
- Component location: in the front center console
- Removing and installing. Refer to Communication
- Rearview Camera System Control Module - J772-
- Component location: in the luggage compartment behind the right side trim panel
- Removing and installing. Refer to 20.4 Rearview Camera System Control Module -J772- .
- Rearview Camera - R189-
- Component location: in the rear lid handle button
- Removing and installing. Refer to 20.3 Rearview Camera, Removing and Installing .
- Nut tightening specification: 6 Nm
- Rearview Camera System, Calibrating. Refer to 20.5 Rearview Camera System, Calibrating .
- Steering Angle Sensor - G85-
- Component location: in the steering column electronics control module behind the steering column switch trim panel on the steering wheel
- Steering Column Electronics Control Module, Removing and Installing. Refer to Steering Column Electronics Control Module
