Transmission Identification

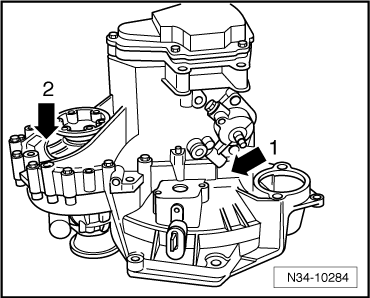

Code Letters and Build Date -arrow 1- Manual Transmission 0A4 -arrow 2-

GWWN34-10284Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

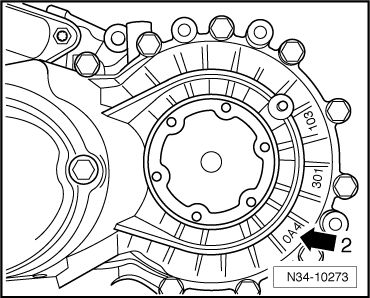

Manual Transmission 0A4 -arrow 2-

GWWN34-10273Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Transmission Codes and Production Date

GWWN00-10949Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Example: LPU 22 07 0
  I I I I
  I I I I
  Codes Day Month 2010 Production Year

Additional data and information is provided by the factory.

NOTE:

The transmission code is also listed on the vehicle data label.
