2.0L TFSI BZ, DDSA/DDSB Top

  1. Camshaft Position Sensor 3 -G300-
  2. Fuel Pressure Regulator Valve -N276-
  3. Cylinder 3 Intake Cam Actuator A -N592-
  4. Cylinder 4 Intake Cam Actuator A -N600-
  5. Cylinder 4 Intake Cam Actuator B -N601-
  6. Cylinder 4 Fuel Injector -N33-
  7. Intake Manifold Runner Control Valve -N316-
  8. Knock Sensor 1 -G61-
  9. Cylinder 3 Fuel Injector -N32-
  10. Intake Manifold Sensor -GX9-
    • Intake Air Temperature Sensor -G42-
    • Manifold Absolute Pressure Sensor -G71-
  11. Cylinder 3 Intake Cam Actuator B -N593-
  12. Cylinder 2 Intake Cam Actuator B -N585-
  13. Cylinder 2 Fuel Injector -N31-
  14. Fuel Pressure Sensor -G247-
  15. Cylinder 1 Fuel Injector -N30-
  16. Intake Manifold Runner Position Sensor -G336-
  17. Cylinder 1 Intake Cam Actuator A -N576-
  18. Cylinder 1 Intake Cam Actuator B -N577-
  19. Cylinder 2 Intake Cam Actuator A -N584-
  20. Evap Canister Purge Regulator Valve 1 -N80-
  21. Ignition Coil 1 With Power Output Stage -N70-
  22. Ignition Coil 2 With Power Output Stage -N127-
  23. Ignition Coil 3 With Power Output Stage -N291-
  24. Ignition Coil 4 With Power Output Stage -N292-

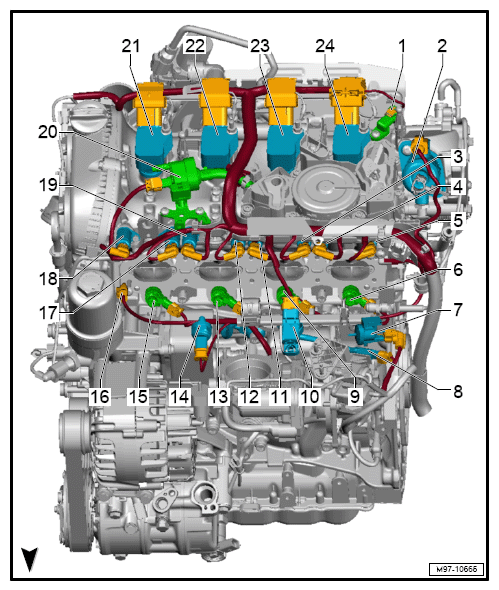

    G12756544Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
