2.0L TFSI BZ DDSA/DDSB Rear

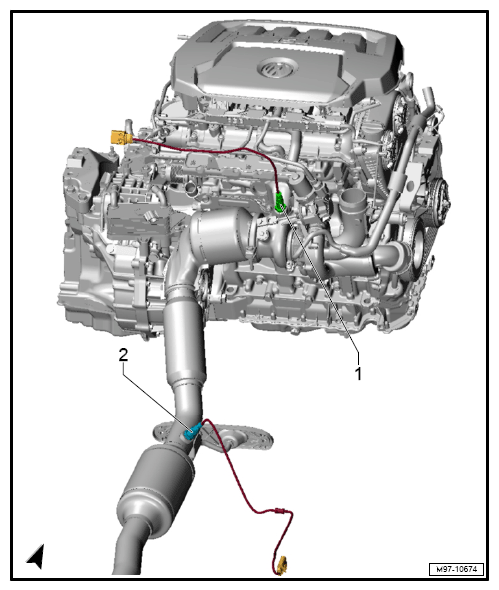

  1. Oxygen Sensor 1 Before Catalytic Converter -GX10-
    • Heated Oxygen Sensor -G39-
    • Oxygen Sensor Heater -Z19-
  2. Oxygen Sensor 1 After Catalytic Converter -GX7-
    • Oxygen Sensor After Catalytic Converter -G130-
    • Heater For Oxygen Sensor 1 After Catalytic Converter -Z29-
    G12756547Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
