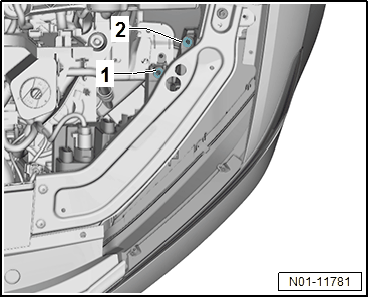

Left Headlamp, Adjusting

Adjusting screws for the right headlamp are a mirror image.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Adjustment screw (inner hex socket) for lateral adjustment of low beam cut-off line -1- (sealed for North America).
• Adjusting screw (inner hex socket) for height adjustment of low beam cut-off line -2-.

-- Turn the adjusting screw for height adjustment -2- until the correct setting is achieved.

-- Turn the adjustment screw for lateral adjustment -1- until the correct setting is achieved.
