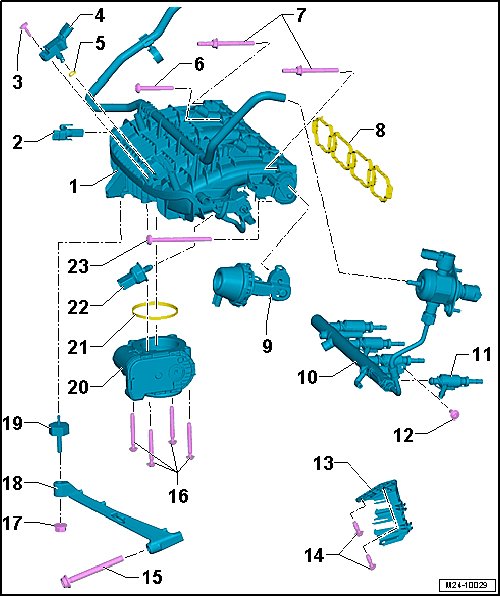

Overview - Intake Manifold
- 1 -Intake Manifold
- Removing and installing. Refer to INTAKE MANIFOLD, REMOVING AND INSTALLING .
- 2 -Intake Manifold Runner Position Sensor -G336-
- To remove bend back the tab and remove the potentiometer from the intake manifold.
- 3 -Bolt
- 5 Nm
- Intake Air Temperature Sensor -G42-
- 4 -Intake Air Temperature Sensor -G42- with Manifold Absolute Pressure Sensor -G71-
- 5 Nm
- 5 -O-ring
- Replace after removing
- 6 -Bolt for Intake Manifold
- 9 Nm
- 7 -Threaded Pin for Outer Intake Manifold
- 9 Nm
- Installed on the outer positions as a guide
- 8 -Seal
- Check and replace if damaged
- 9 -Intake Manifold Flap Vacuum Diaphragm
- 10 -Fuel Injector Fuel Rail
- 11 -Fuel Injectors
- Replace the O-ring and Teflon® ring
- Make sure it is in the installation position
- Removing and installing. Refer to FUEL INJECTORS, REMOVING AND INSTALLING .
- 12 -Bolt
- 5 Nm
- High pressure pipe to intake manifold
- 13 -Bracket
- Connectors
- 14 -Bolt
- 5 Nm
- 15 -Bolt
- 20 Nm
- For the intake manifold bracket
- 16 -Bolts for the Throttle Valve Control Module -J338-
- 7 Nm
- 17 -Nut for the Intake Manifold Support
- 10 Nm
- 18 -Intake Manifold Support
- 19 -Rubber Bushing
- 5 Nm
- 20 -Throttle Valve Control Module -J338-, EPC Throttle Drive -G186-,
- EPC Throttle Drive Angle Sensor 1 -G187- and EPC Throttle Drive Angle Sensor 2 -G188-
- The Throttle Valve Control Module -J338- must be adapted to the Engine Control Module -J623- when it is removed and installed or replaced. See "Guided Functions" ; to do so, use Vehicle Diagnostic Tester
- 21 -Seal
- Always replace after removing
- 22 -Fuel Pressure Sensor -G247-
- Refer to Fuel Pressure Sensor -G247-, REMOVING AND INSTALLING
- Coat the sealing point and thread with clean engine oil.
- -Item 23- OVERVIEW - FUEL RAIL WITH FUEL INJECTORS
- 23 -Bolts
- 9 Nm
- Fuel rail to cylinder head
