Back of Engine

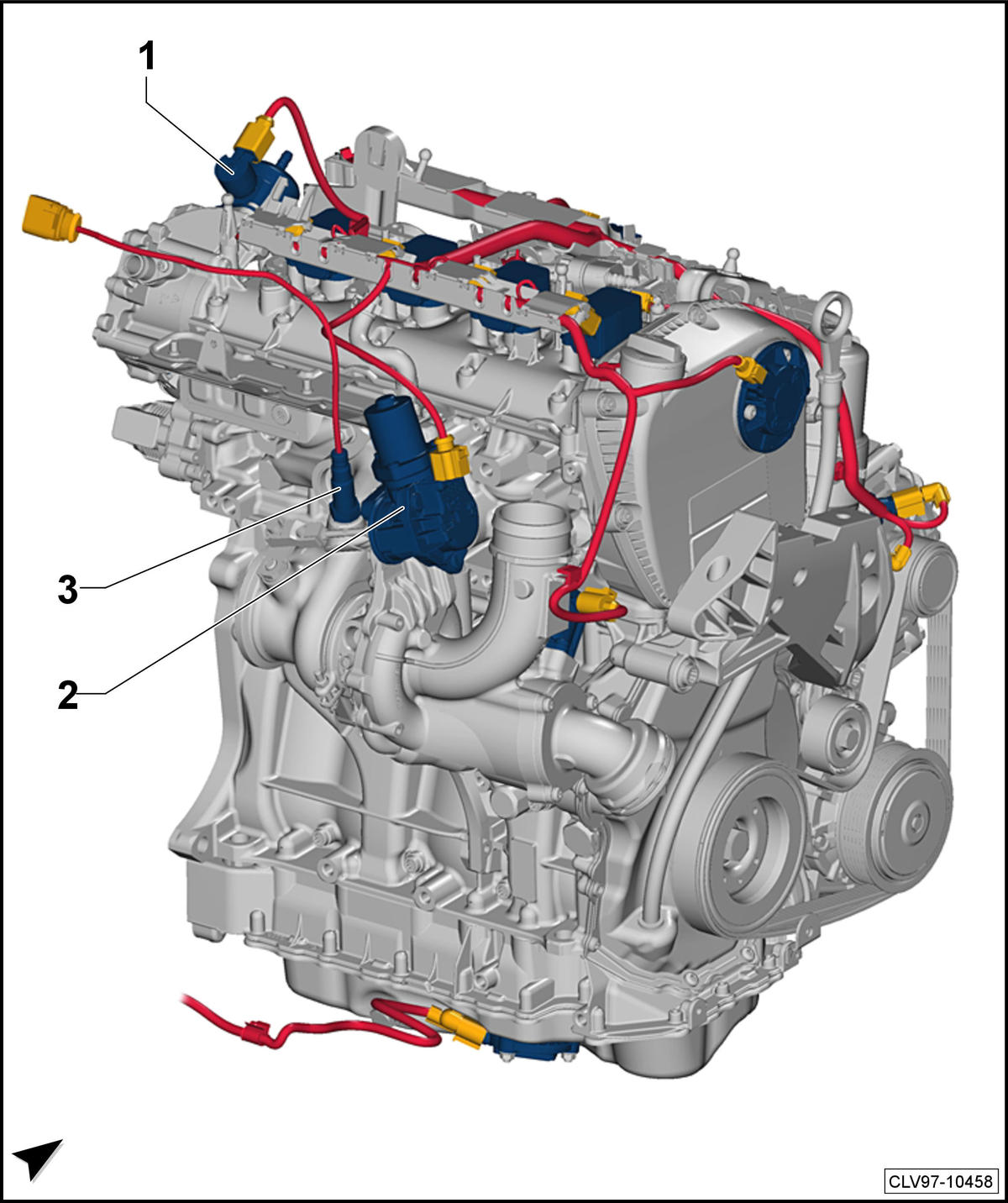

GWWCLV97-10458Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Fuel Metering Valve -N290-
  2. Charge Air Pressure Actuator -V465-
  3. Oxygen Sensor 1 Before Catalytic Converter -GX10-
    • Consists of Heated Oxygen Sensor -G39- and Oxygen Sensor Heater -Z19-
