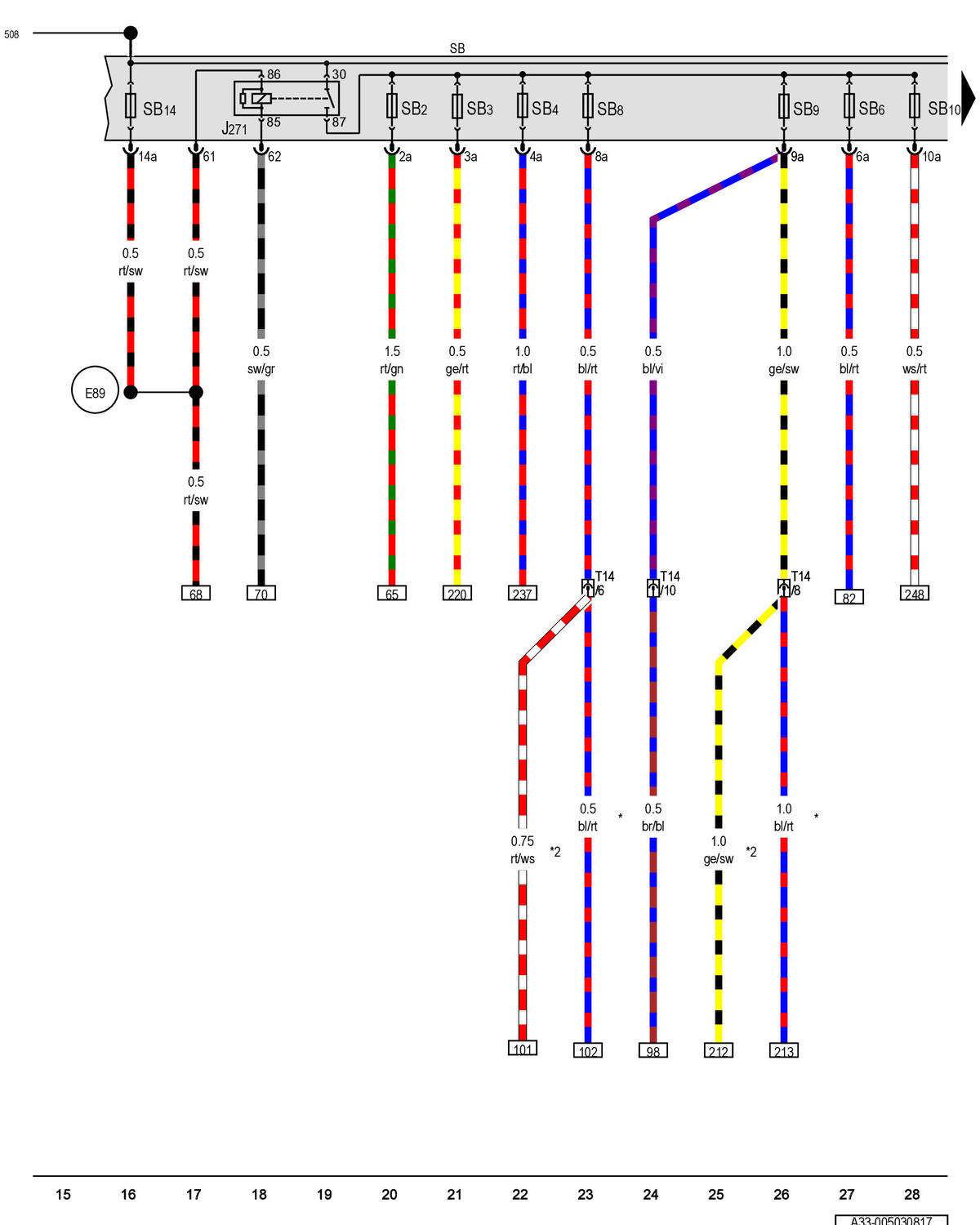

MOTRONIC Engine Control Module Power Supply Relay, Fuse Panel B: Notes

GWWA33-005030817

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
